4500 26 port
3Com
Elevation Images

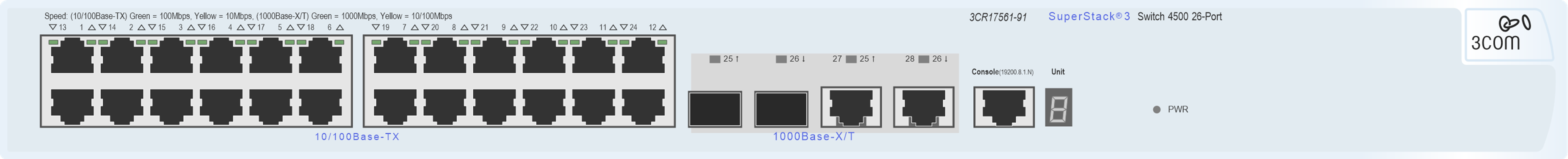

Front

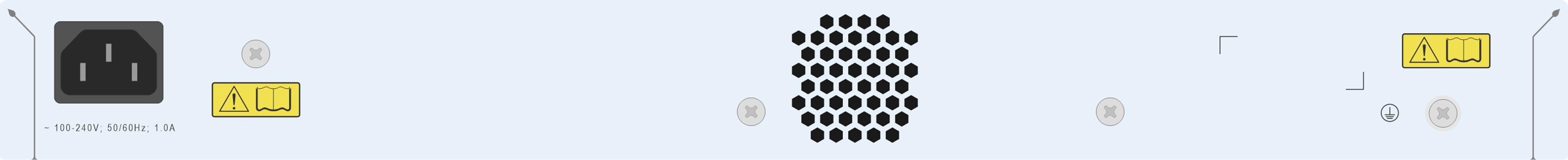

Rear
U Height
1U
Part Number
3CR17561-91
Airflow
right to left
Full Depth
No
Get this device type
# Clone the full library
git clone https://github.com/mrmrcoleman/odx-library
# The file is at:
# device-types/3Com/3com-4500-26-port.yamlInterfaces (28)
| Name | Type | Mgmt Only |
|---|---|---|
| FastEthernet0/1 | 100base-tx | No |
| FastEthernet0/2 | 100base-tx | No |
| FastEthernet0/3 | 100base-tx | No |
| FastEthernet0/4 | 100base-tx | No |
| FastEthernet0/5 | 100base-tx | No |
| FastEthernet0/6 | 100base-tx | No |
| FastEthernet0/7 | 100base-tx | No |
| FastEthernet0/8 | 100base-tx | No |
| FastEthernet0/9 | 100base-tx | No |
| FastEthernet0/10 | 100base-tx | No |
| FastEthernet0/11 | 100base-tx | No |
| FastEthernet0/12 | 100base-tx | No |
| FastEthernet0/13 | 100base-tx | No |
| FastEthernet0/14 | 100base-tx | No |
| FastEthernet0/15 | 100base-tx | No |
| FastEthernet0/16 | 100base-tx | No |
| FastEthernet0/17 | 100base-tx | No |
| FastEthernet0/18 | 100base-tx | No |
| FastEthernet0/19 | 100base-tx | No |
| FastEthernet0/20 | 100base-tx | No |
| FastEthernet0/21 | 100base-tx | No |
| FastEthernet0/22 | 100base-tx | No |
| FastEthernet0/23 | 100base-tx | No |
| FastEthernet0/24 | 100base-tx | No |
| GigabitEthernet1/0/25 | 1000base-x-sfp | No |
| GigabitEthernet1/0/26 | 1000base-x-sfp | No |
| GigabitEthernet1/0/27 | 1000base-t | No |
| GigabitEthernet1/0/28 | 1000base-t | No |
Power Ports (1)
| Name | Type | Max Draw |
|---|---|---|
| PSU | iec-60320-c14 | 100W |
Console Ports (1)
| Name | Type |
|---|---|
| Console | de-9 |
